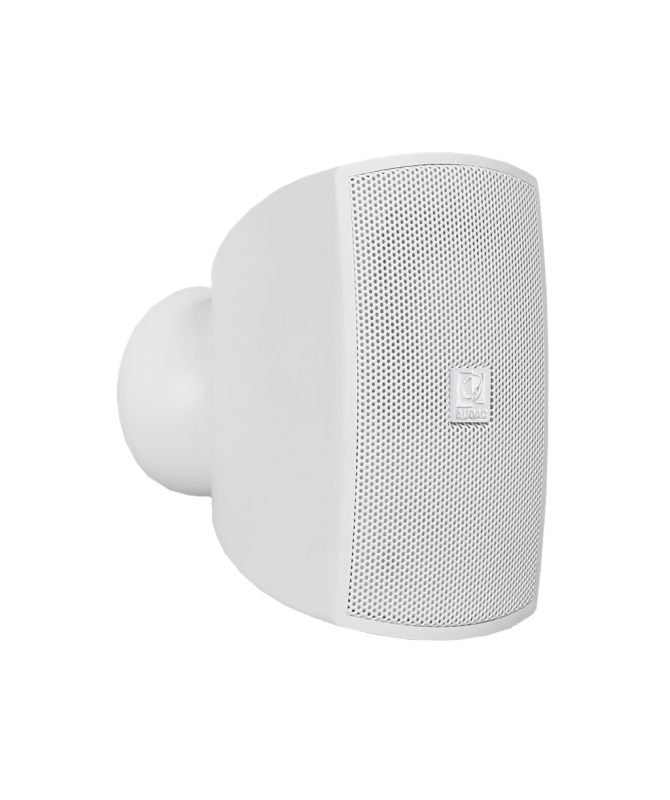

AUDAC ATEO 2 White 8 ohm, Diffusore Audio Passivo

Riferimento: 36

DIFFUSORE PASSIVO  WHITE impedenza 8 ohm

33,00 €
Tasse incluse
Quantità
Ultimi articoli in magazzino

La quantità minima ordinabile per questo prodotto è 2.

ARTICOLO: AUDAC ATEO 2 W

DESCRIZIONE:

DIFFUSORE PASSIVO  WHITE impedenza 8 ohm

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO 2 is the ultra-compact model of this series which smoothly integrates into any interior like no other loudspeaker. The sound originates from a 2 aluminum cone driver which provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design. This way, smooth sound reproduction with clear and crisp sound is guaranteed.

The internal self-resetting network provides optimal overload protection. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.

The mounting and connection of the loudspeaker is done by mounting the wall-plate to the desired location. The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers side. The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until it's fixed.

System specifications
Speaker type Full range
Max. Power 20 W
RMS Power 10 W
Impedance 8 ? (ATEO2)
16 ? (ATEO2D)
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 93 dB
Ingress Protection rating IP40
Connectors 2-pin Euro Terminal Block
Drivers 2 Aluminium full range
Incline angle Left 25
Right 25
Bottom 25
Top 15
Frequency Response ( 3 dB) 120 Hz - 20 kHz
Range (-10 dB) 100 Hz - 20 kHz
Dispersion Horizontal 145
Vertical 170

Product features
Dimensions 80 x 136 x 115 mm (W x H x D)
Weight 0.390 kg
Operating temperature -20 C ~ 60 C
Mounting Clevermount
Construction ABS
Front finish Steel grill
Colours Black (RAL9005) (ATEO2/B, ATEO2D/B)
White (RAL9003) (ATEO2/W, ATEO2D/W)
Accessories Optional WTR06 - 6W 100V line transformer

VARIANTI

  • ATEO2/B - Black version - 8"
  • ATEO2/W - White version - 8" - ARTICOLO DISPONIBILE IN PRONTA CONSEGNA
  • ATEO2D/B - Black version - 16"
  • ATEO2D/W - White version - 16"
